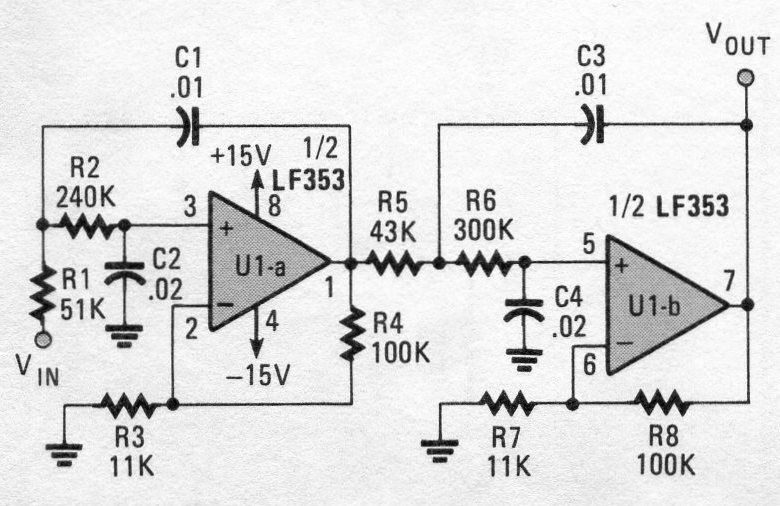

Fourth Order Low Pass Filter (CB14925E)

This filter, with a cut-off frequency of approximately 1 kHz, has a high Q and employs two operational ones. The power supply must be symmetrical.
