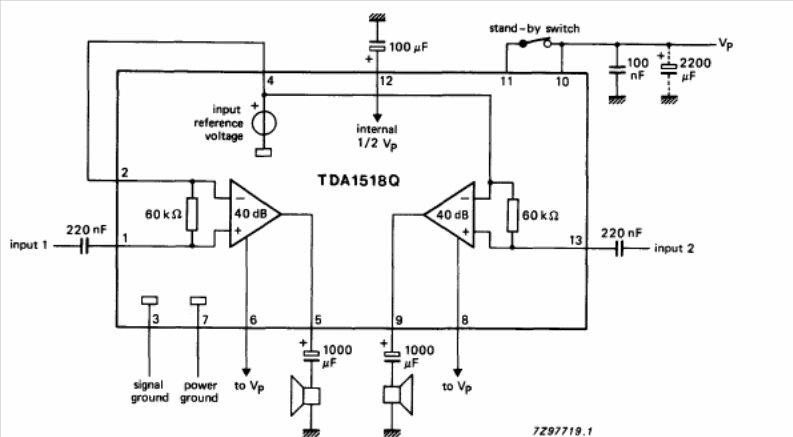

The input resistance of this circuit is 60k and the pass band from 20 to 20kHz. The circuit is from the 1990 Philips Databook. The integrated circuit must have a good heat radiator.
| Clique na imagem para ampliar |
6 W per Channel Automotive Amplifier TDA1518Q (CB15377E)
