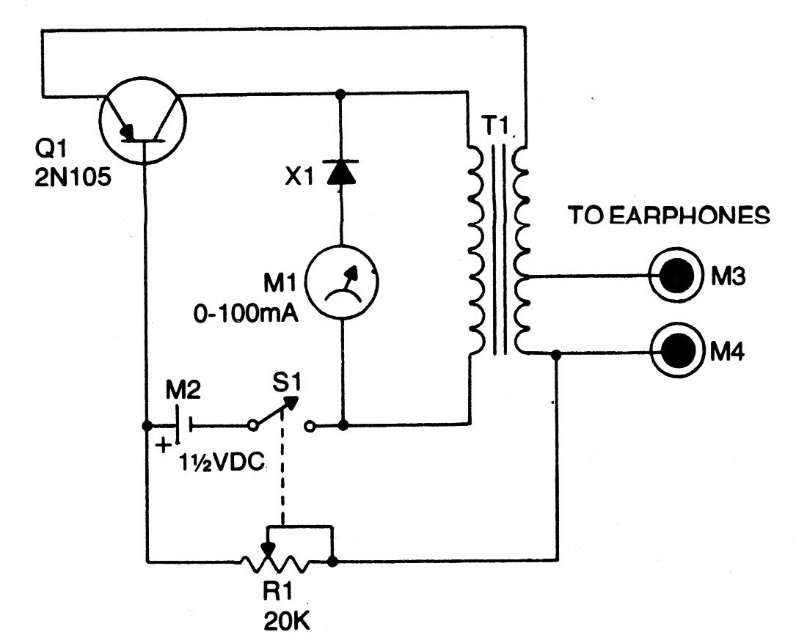

This interesting circuit makes the needle of a microammeter oscillate at random, imitating a perpetual motion. The transformer is for the output of old transistor radios and you can have sound in a headset connected to the output. The transistor can be the BC558. The circuit is from a 1981 publication.
