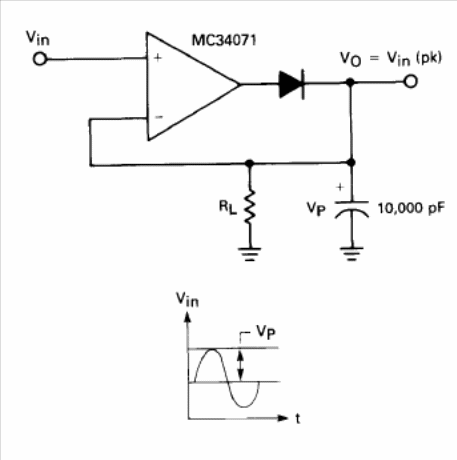

This circuit is from the Motorola Linear Databook of 1990. The values of the components depend on the voltage to be detected and the configuration can be applied to other operational amplifiers.
Low Voltage Peak Detector MC34071 (CB14486E)
