Undervoltage Indicator (CB14975E)

Details
Written by: Newton C. Braga

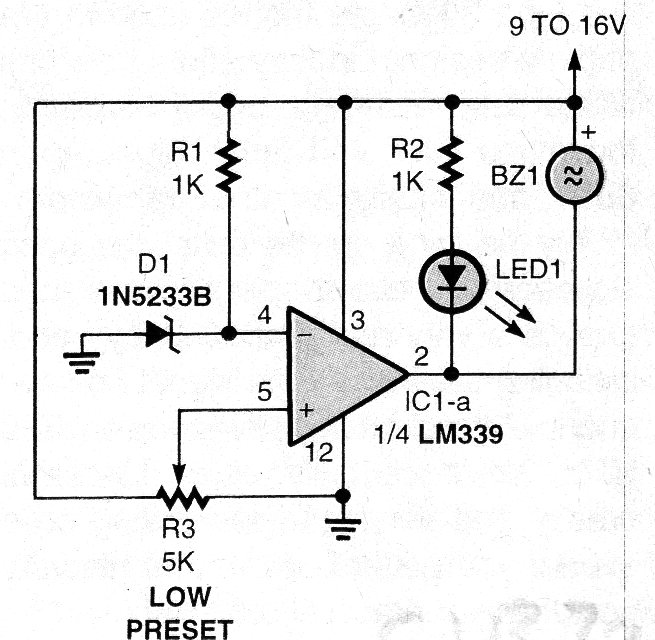

When the voltage supplying the circuit falls below the zener value, the LED lights up, and if a low current buzzer is used, it is activated. The circuit is from a 1999 American publication.
