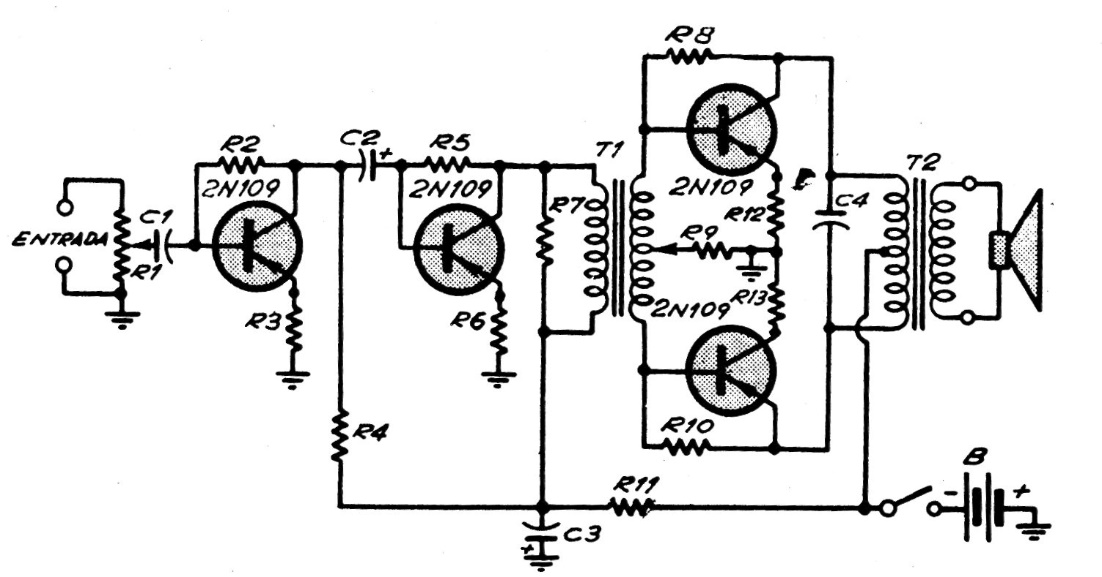

We found this small amplifier in a 1973 technical publication. The critical components are the original germanium transformers and transistors. This circuit can be found on portable record players of that time. The gain is 90 dB.
| Clique na imagem para ampliar |
