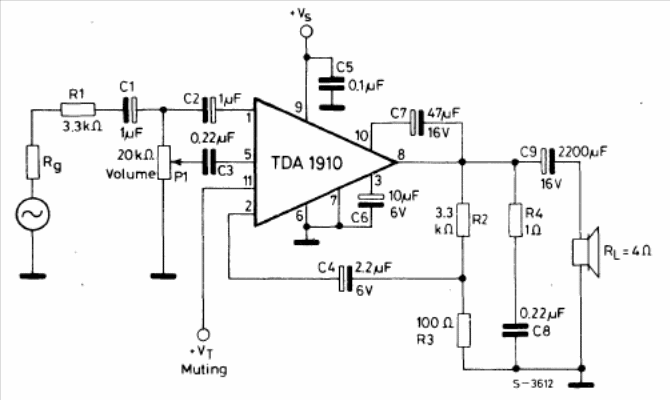

This circuit provides a power of 12 W with 24 V of supply, consuming a current of 820 mA and presenting a gain of 30 dB. The TDA1910 is not common today. The circuit was obtained in the SGS manual of linear integrated circuits of 1982.
