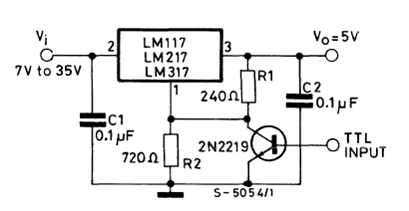

The regulator for TTL source is from the SGS linear integrated circuits manual. The integrated circuit must be equipped with a radiator and the meter has a logic control that can be done with the BC548 transistor, being inhibited at the high level.
5 V x 1.5 A Regulator LM117 (CB15177E)
- Details
- Written by: Newton C. Braga
