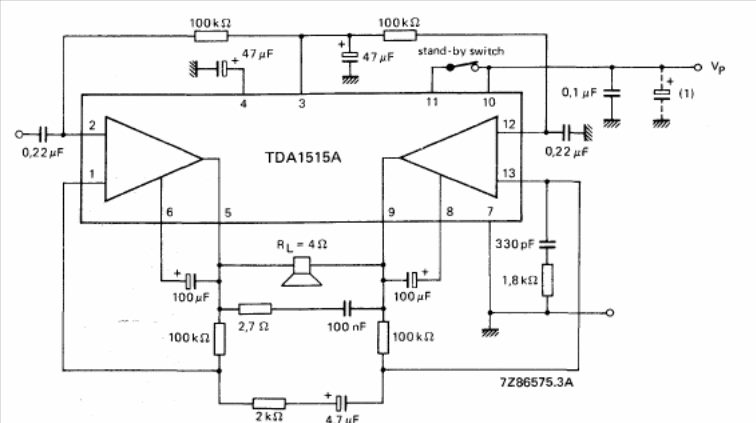

This amplifier is from the 1990 Philips Databook. The integrated circuit must have a heatsink and the power can be between 6 and 12 V symmetrical. The circuit is suitable for automotive applications.
| Clique na imagem para ampliar |
Automotive BTL 24W Amplifier TDA1515A (CB15372E)
