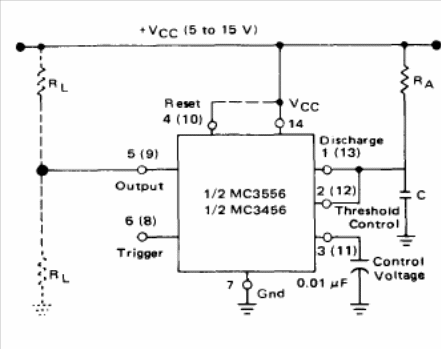

The integrated circuits suggested in this project are double equivalents of the well-known 555. The circuit is from the Motorola Linear Databook of 1990 and the components are calculated in the same way as in a common 555.
Monostable MC3556 (CB14590E)
- Details
- Written by: Newton C. Braga
