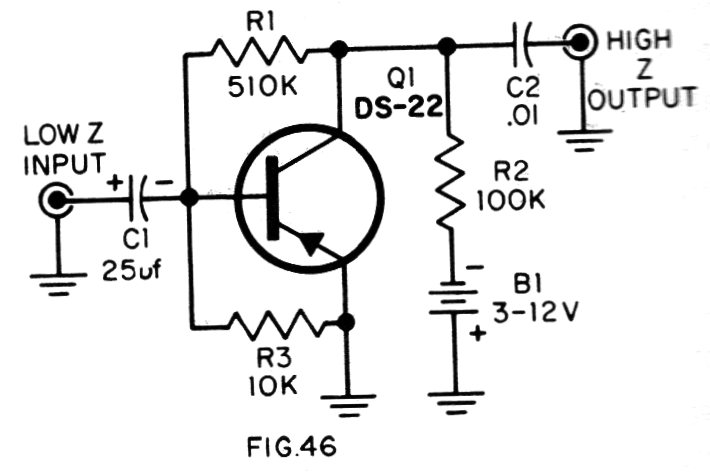

With this circuit it is possible to connect a low impedance microphone to the high impedance input of an amplifier. The circuit is from a 1964 publication, but it can be implemented with a BC559 and, with the inversion of power, with a BC549. Consumption is low and power can be supplied by battery.
