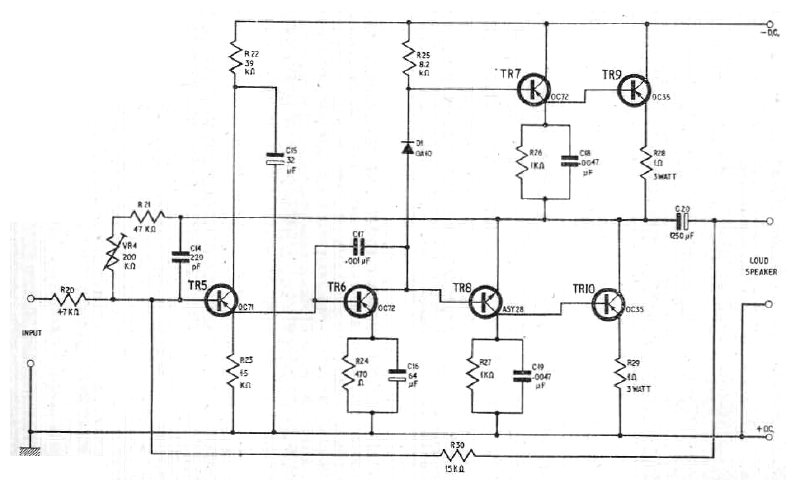

This amplifier is powered by a 9 V source. We found the circuit in a 1964 documentation. The transistors are made of germanium and modern transistors can be used with modifications to the bias components.
| Clique na imagem para ampliar |
300 mW amplifier (CB14460E)
- Details
- Written by: Newton C. Braga
