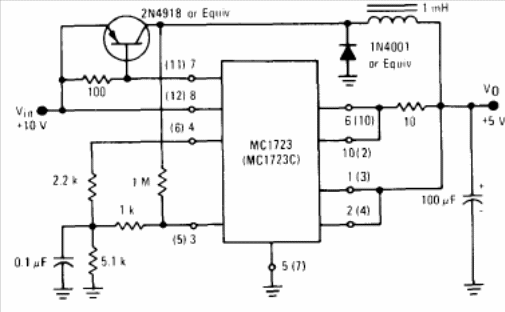

The 723 integrated circuit is manufactured by several semiconductor companies with different prefixes and the suggested configurations are similar. This switching regulator circuit is from Motorola's 1990 Linear Databook.
Switching Regulator 5 V x 1.5 A 723 (CB14526E)
- Details
- Written by: Newton C. Braga
