AC Signal Comparator (CB14418E)

Details
Written by: Newton C. Braga

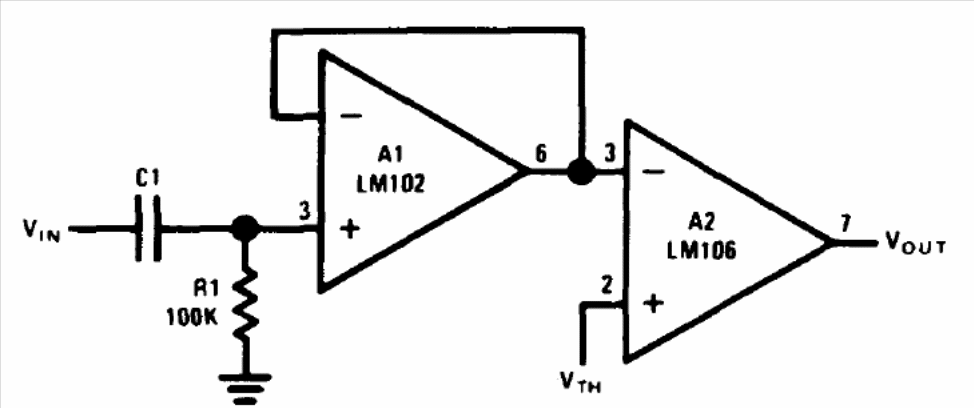

The circuit shown in the figure can be designed with more modern operational amplifiers, as it is from 1994 documentation by National Semiconductor. The power supply must be symmetrical.




| Clique na imagem para ampliar |
