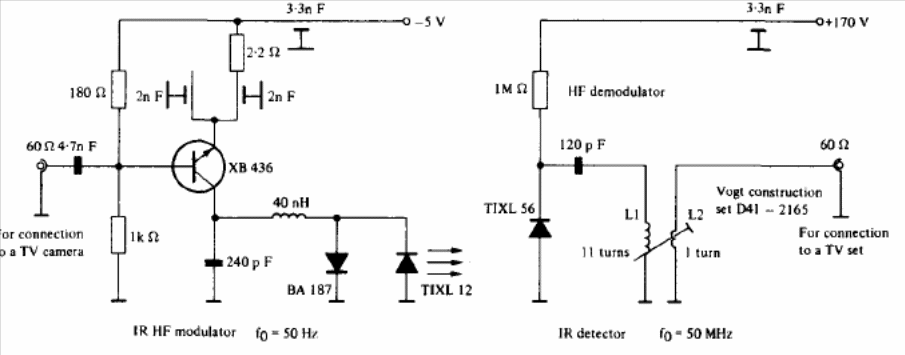

The circuits shown in the figure, that of an infrared video signal transmitter and receiver, were found in a Texas Instruments optoelectronics manual. Optical features, such as lenses, should be used to achieve greater range.
| Clique na imagem para ampliar |
