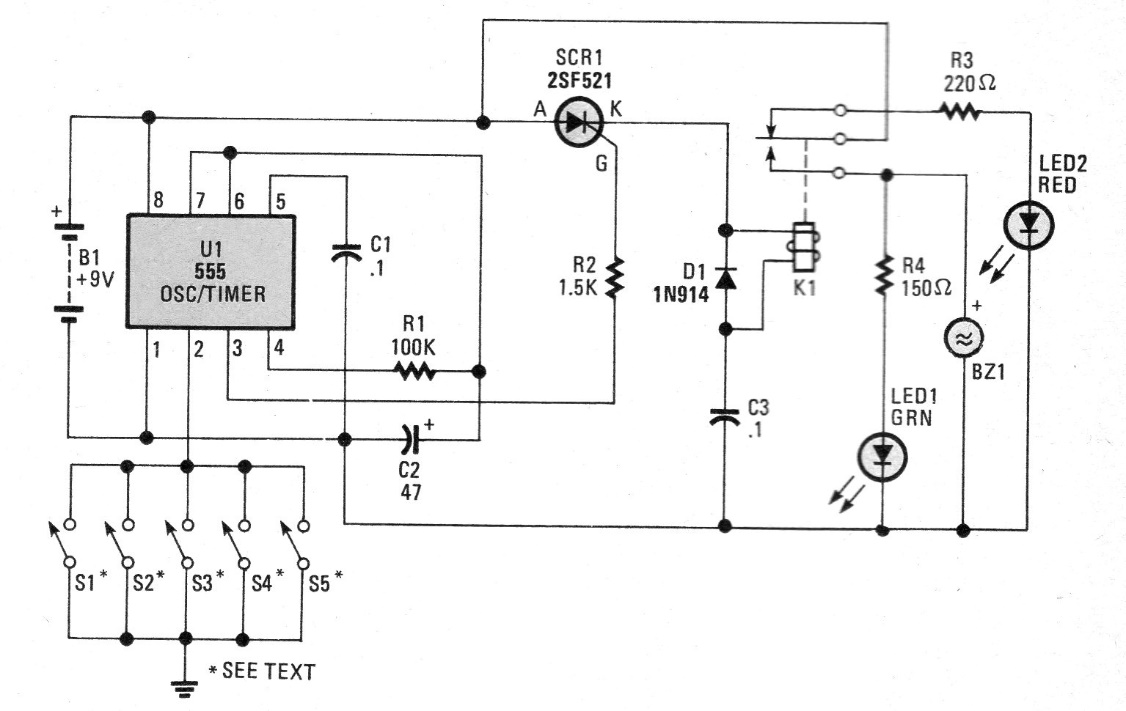

This alarm circuit was found in a 1989 Poptronics, but all the components used are common, as the SCR can be a TIC106. The circuit has NO sensors that, when closed, produce the circuit clock. The relay can be 6 or 12 V, depending on the voltage used in the supply. The 2 V drop in the SCR while driving must be compensated.
