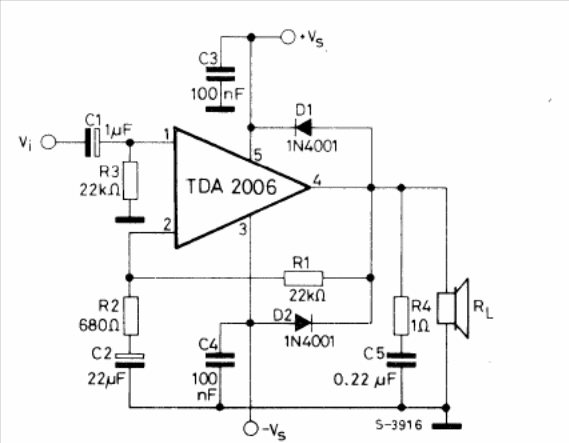

10 W amplifier TDA2006 II (CB15242E)
- Details
- Written by: Newton C. Braga
The power supply for this circuit must be symmetrical at 15 + 15 V and the load at 4 or 8 ohms. The circuit is from the 1982 SGS Linear Integrated Circuits Manual.
