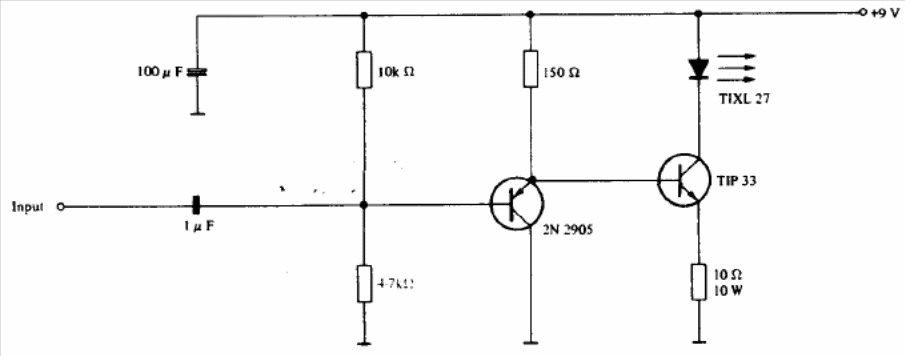

The circuit shown is from the Texas Instruments optoelectronics manual. It is intended for audio links with infrared power emitting LEDs. Equivalent transistors can be used. The circuit can be used as a shield.
| Clique na imagem para ampliar |
Optical Power Modulator (CB14676E)
- Details
- Written by: Newton C. Braga
