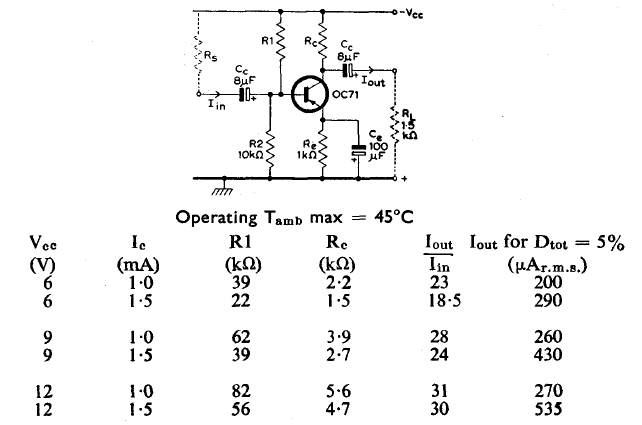

The circuit in the figure uses an old OC71 germanium transistor. Performance depends on component values, as shown in the table below. The circuit is from the 1960 Mullard transistor reference manual.
| Clique na imagem para ampliar |
Amplifier Stage OC71 (CB14750E
- Details
- Written by: Newton C. Braga
