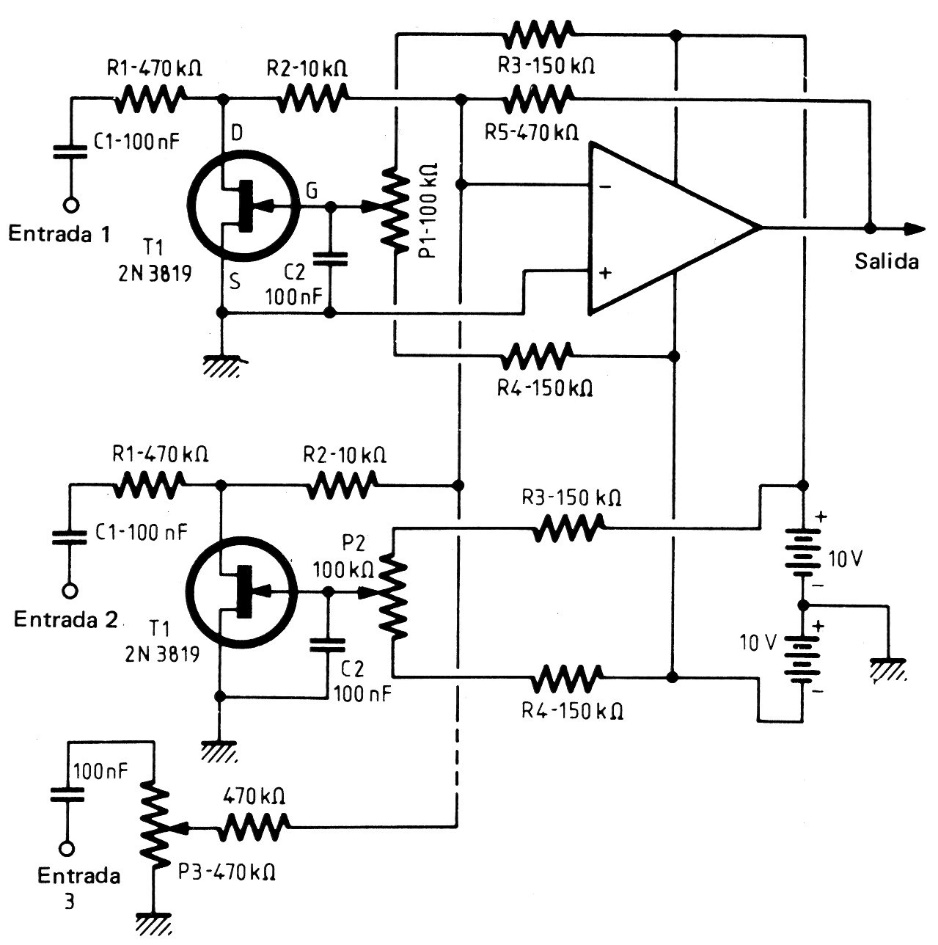

Operational amplifier such as the CA3140 or the TL series can be used in this circuit from a 1982 documentation. FETs can be equivalent as the BF245 or MPF102 and the power supply must be symmetrical. More inputs can be added to the circuit.
| Clique na imagem para ampliar |
