This circuit is from the Linear Applications Handbook of the National Semiconductor of 1994. The operational output can be of any type and its power source must be symmetrical.
| Clique na imagem para ampliar |

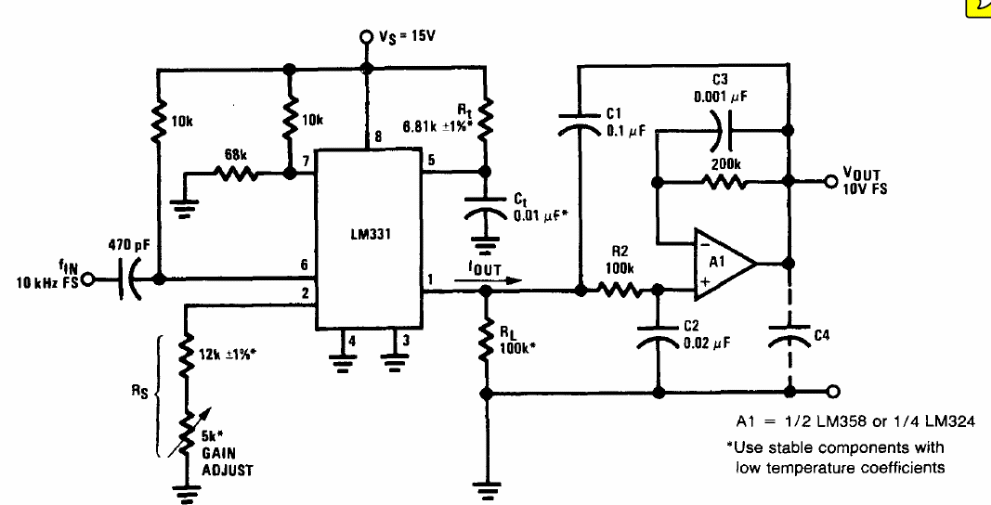

Frequency to Voltage Converter with Output Buffer LM311 (CB14434E)
- Details
- Written by: Newton C. Braga
