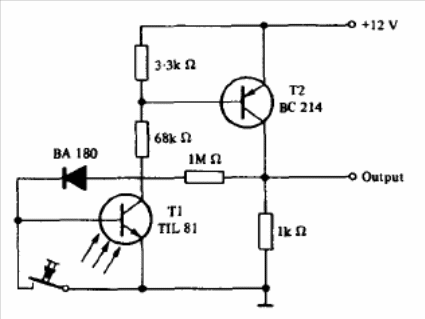

This configuration uses complementary transistors, one of which is the phototransistor. The other may be a BC558. The circuit is from a Texas Instruments opto-electronics manual. The circuit can be used as a shield for microcontrollers.
Complementary Photo Trigger (CB14660E)
- Details
- Written by: Newton C. Braga
