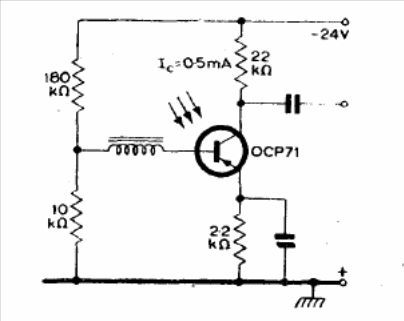

We found this circuit in the 1960 Mullard transistor reference manual. The phototransistor can be a modern equivalent and the capacitors, as well as the inductor, depend on the frequency of the received modulated signal.
Modulated Light Receiver (CB14749E)
- Details
- Written by: Newton C. Braga
