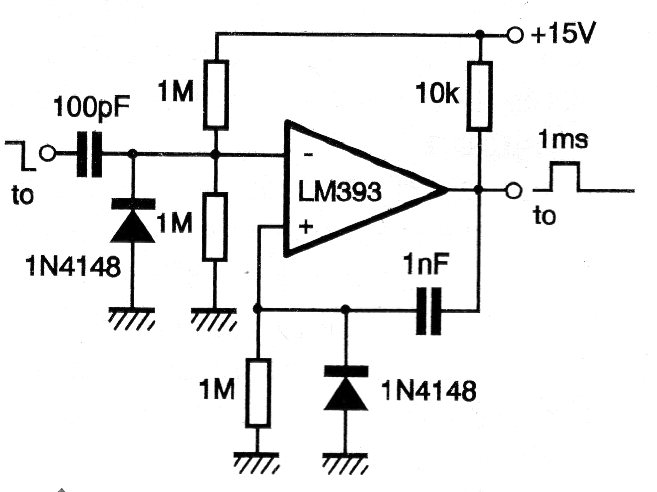

In the figure we have the way to implement a monostable with an operational amplifier LM393. The configuration applies to other operators and the power supply must be symmetrical.
| Clique na imagem para ampliar |
Operational Monostable (CB15107E)
