Wired Intercom (CB14455E)

Details
Written by: Newton C. Braga

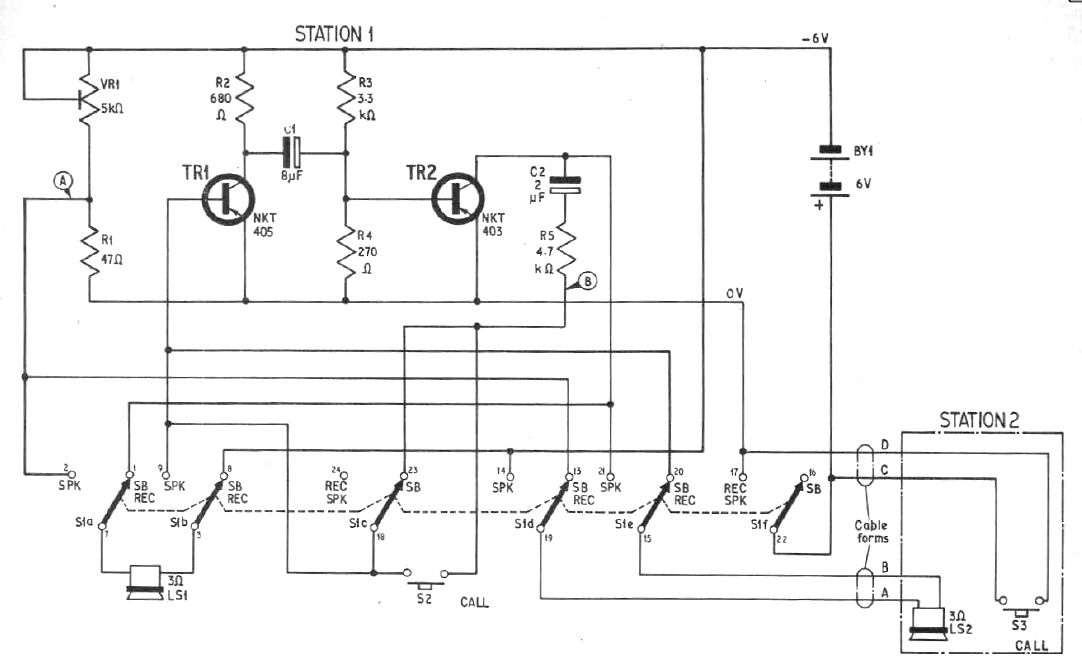

This circuit is from an old English publication from 1968. We can implement it with TIP32 transistors in a more modern version. Power can be done with either large batteries or a power supply.




| Clique na imagem para ampliar |
