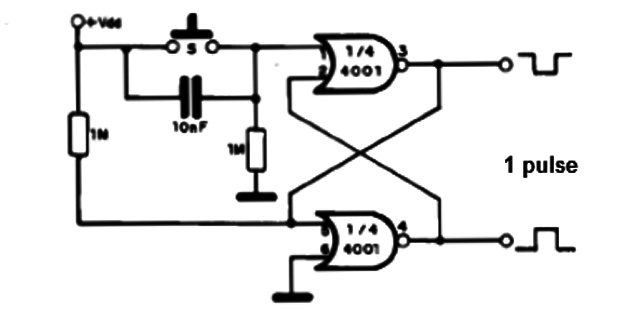

This circuit generates a single pulse with duration given by the capacitor. The circuit can be used as a debounced switched. Power supply for the CMOS can range from 3 to 12 V.
![](/images/sampledata/cb/cb861_0001.png)
This circuit generates a single pulse with duration given by the capacitor. The circuit can be used as a debounced switched. Power supply for the CMOS can range from 3 to 12 V.
