Current Regulator LM317 (CB15317E)

Details
Written by: Newton C. Braga

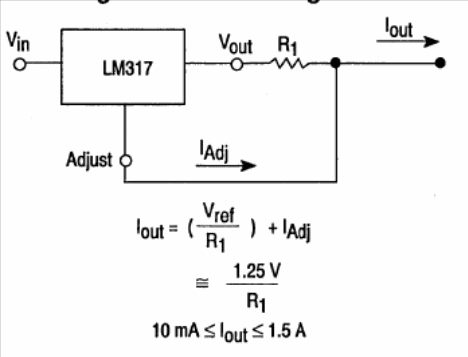

The maximum output current of this constant current circuit is 1.5 A. The circuit is from the 1993 Motorola Linear Interface ICs. The integrated circuit must have a heat radiator. The formulas for calculating the current are next to the diagram.
