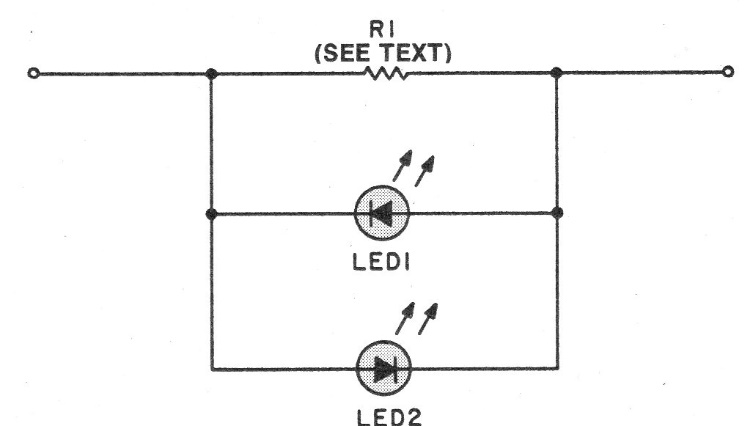

This circuit can monitor direct or alternating currents. Resistor R1 is calculated so that the voltage drop with the desired current is approximately 1.8 V if the LEDs are red. The maximum current must not exceed the capacity of the LED.
