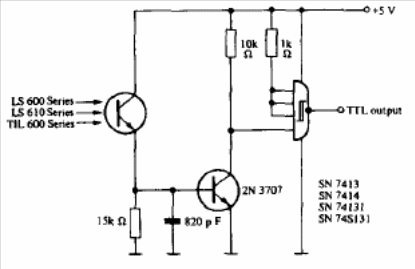

We found this setting in the Texas Instruments opto-electronics manual. The bipolar can be the BC548 and the phototransistor admits equivalent. We can use the circuit as an input shield for microcontrollers.
Sensitive TTL Opto Trigger (CB14671E)
- Details
- Written by: Newton C. Braga
