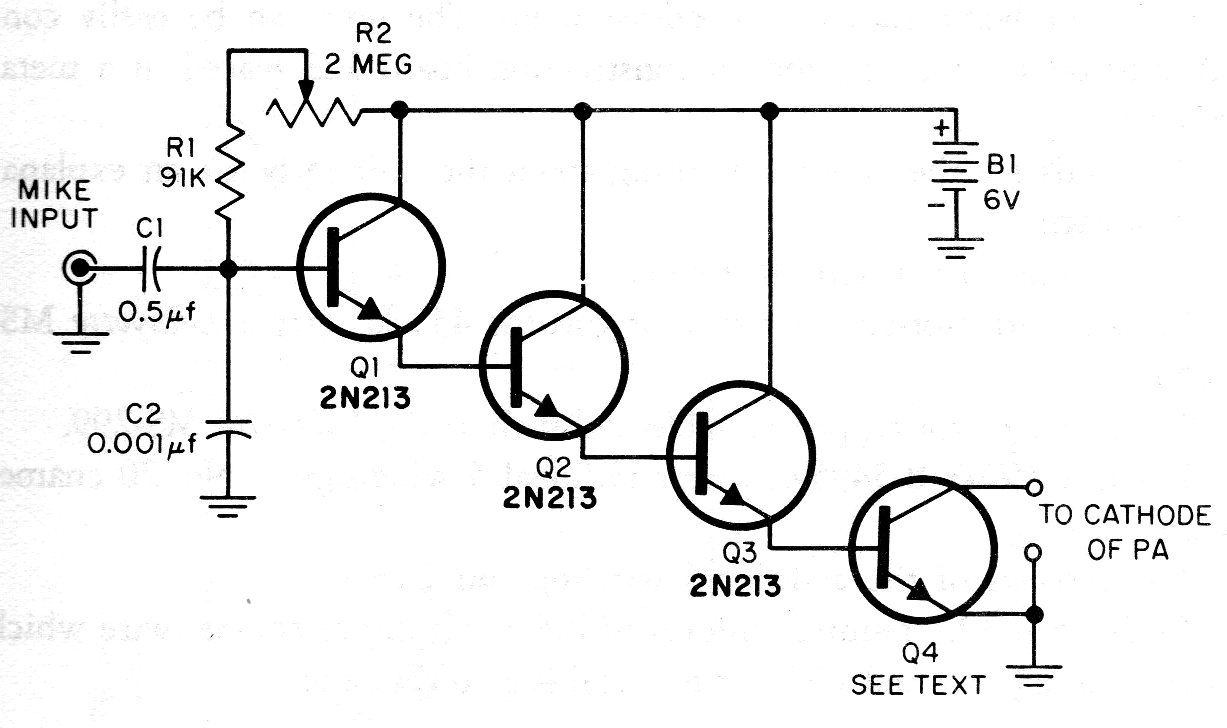

This modulator circuit for transmitters was found in American documentation from 1964. It can be implemented with modern equivalent transistors. The circuit is powered by a voltage of 6 V and the potentiometer adjusts the polarization to the correct level of modulation.
