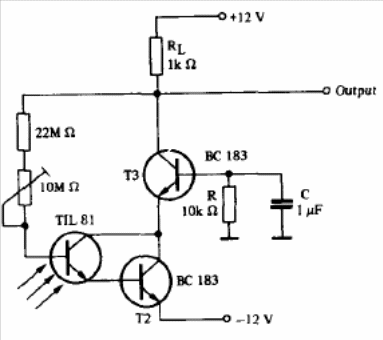

In the figure we have an increased dynamic response configuration with the use of a transistor (TR3) in the common base configuration. The circuit is from a Texas Instruments optoelectronics manual.
Fast Phototransistor (CB14654E)
- Details
- Written by: Newton C. Braga
