11 W BTL amplifier TDA1519B (CB15385E)

Details: Written by: Newton C. Braga

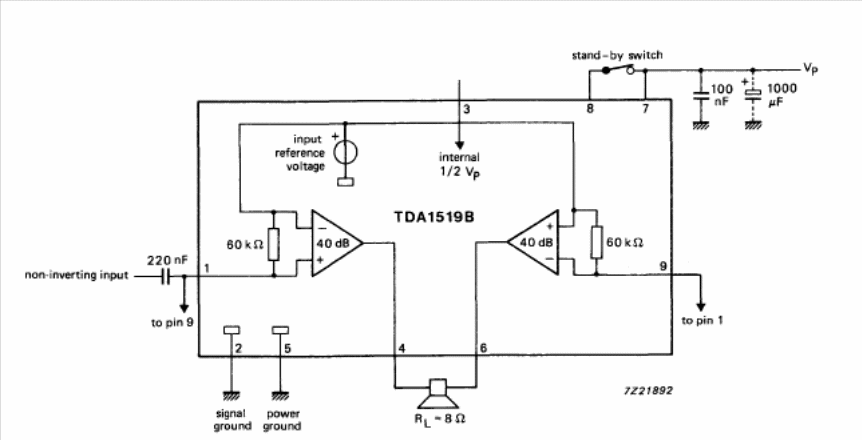

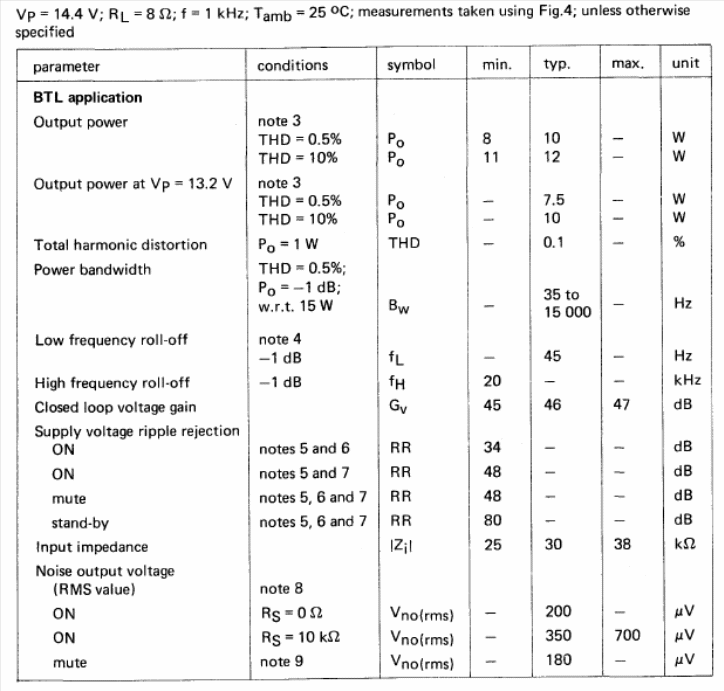

We found this amplifier for automotive use in the Philips Databook of 1990. The circuit has a bridge configuration, and the characteristics are given in the table below the diagram.
