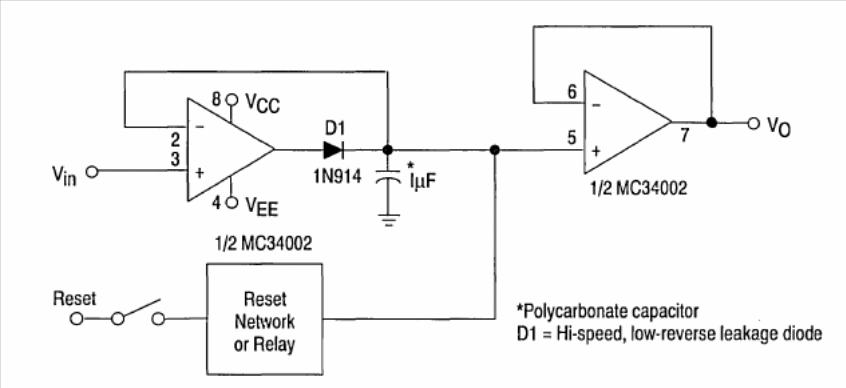

Positive Peak Detector MC34001 (CB15273E)

Details
Written by: Newton C. Braga



Other operational amplifiers from the same family such as MC34002, MC35001, MC34004 and MC35004 can also be used. The circuit is from Motorola's 1993 Linear Interface ICs. The power supply must be symmetrical.
