Parking Light (CB14652E)

Details: Written by: Newton C. Braga

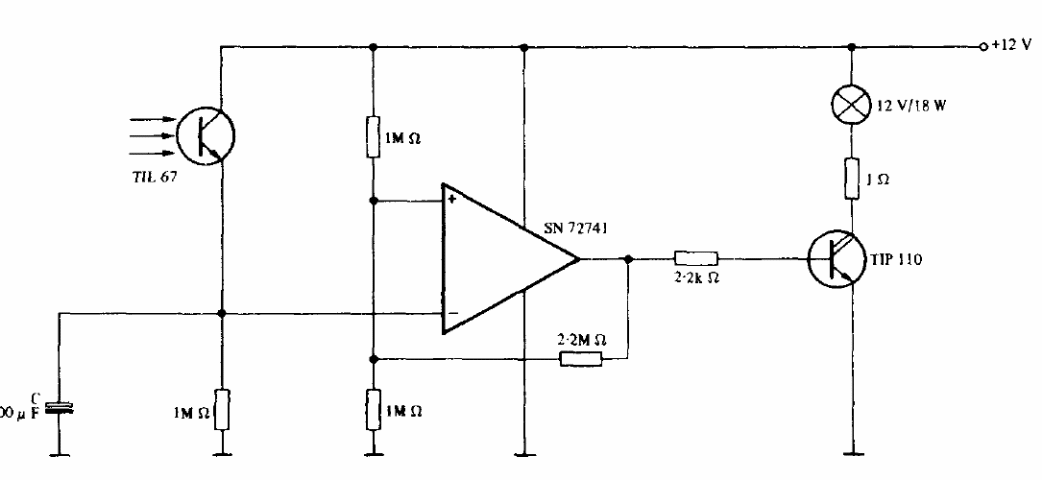

We found this parking light circuit for automotive use in a Texas Instruments optoelectronics documentation. The Darlington transistor can be replaced by others in the TIP line.
