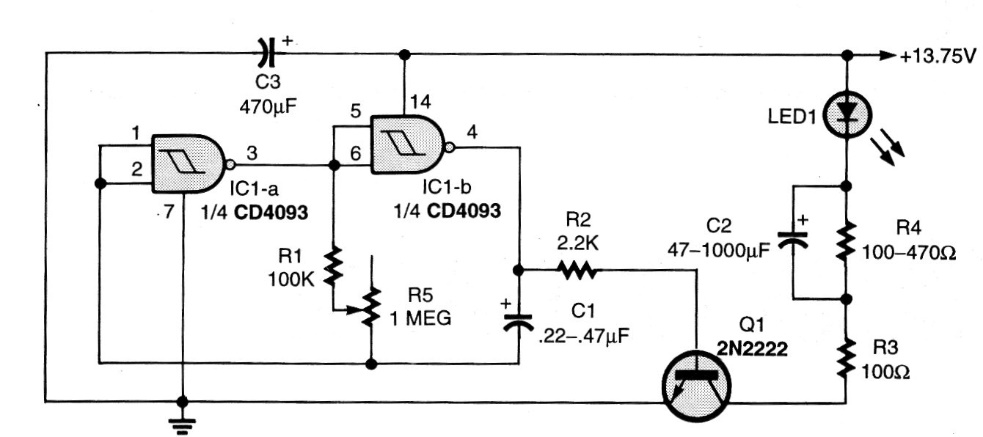

This circuit was found in a Poptronics of the 90's. It can be powered by voltages between 6 and 15 V, and with 13.75 V it is indicated in applications with battery. The effect is of variable pulsations with a drop in intensity on a ramp. The frequency can be adjusted in the pot.
| Clique na imagem para ampliar |
