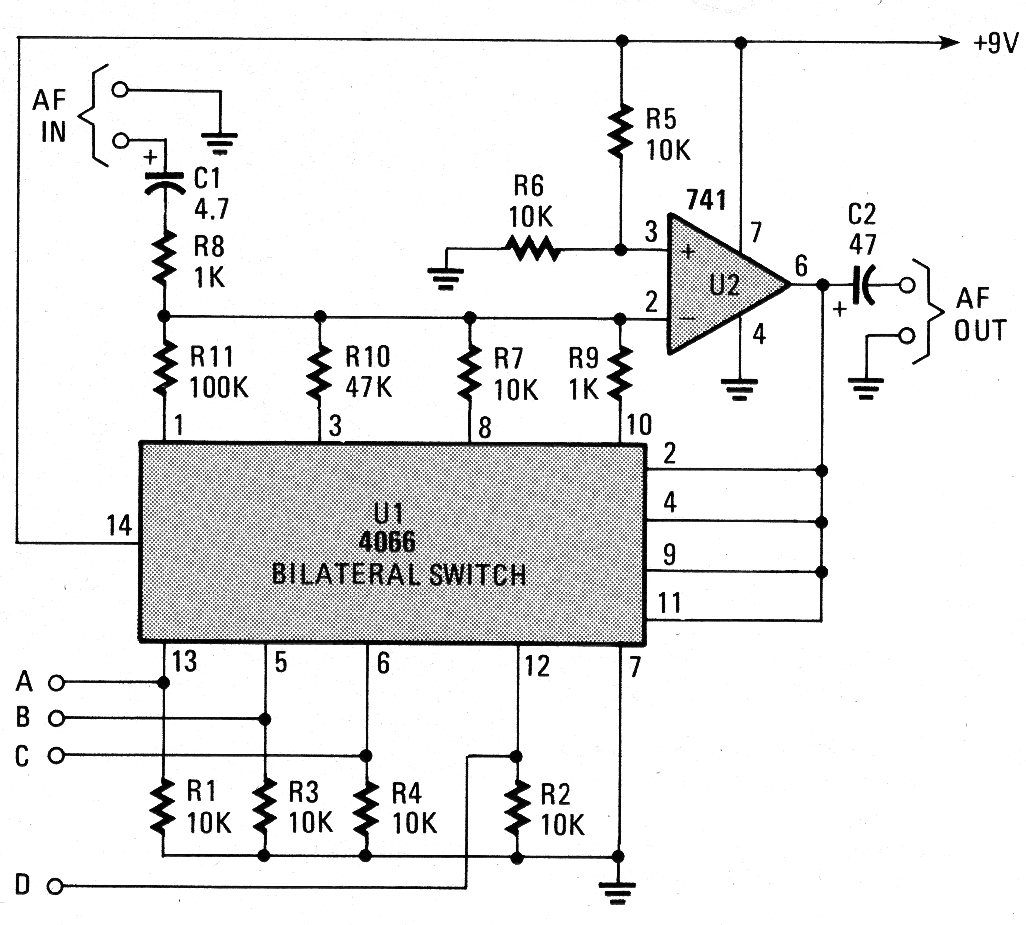

With the circuit shown in the figure it is possible to digitally control the gain of an operational amplifier. The gains are determined by resistors from R9 to R11, which can be changed. The circuit is from 1990 documentation and can be adapted for other operational ones.
