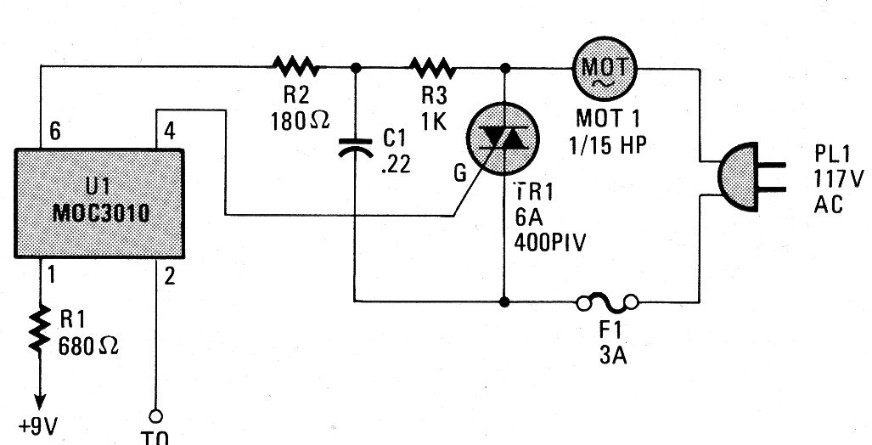

This circuit isolates a stage with Triac from a TTL or CMOS trigger circuit, for example. The circuit can be used with triacs of the TIC series with current according to the load controls, a motor, for example. We found this circuit in a Poptronics from the 90s.
| Clique na imagem para ampliar |
