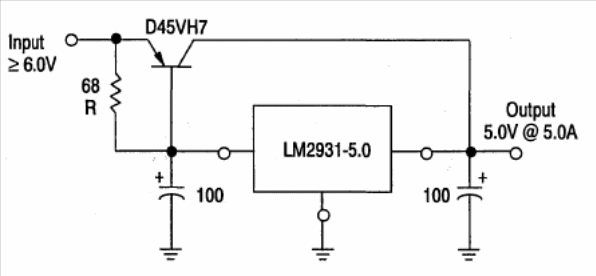

This 5 V regulator has a low voltage drop and can supply currents up to 5 A. The circuit is from Motorola's 1993 Linear Interface ICs. The transistor must be of low conductive resistance type.
LDO regulator with LM2931-5 (CB15322E)
- Details
- Written by: Newton C. Braga
