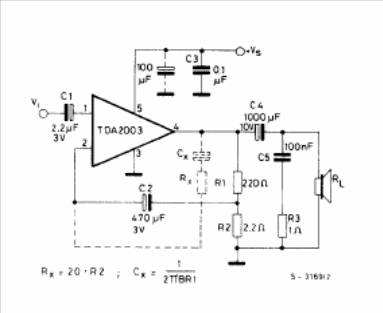

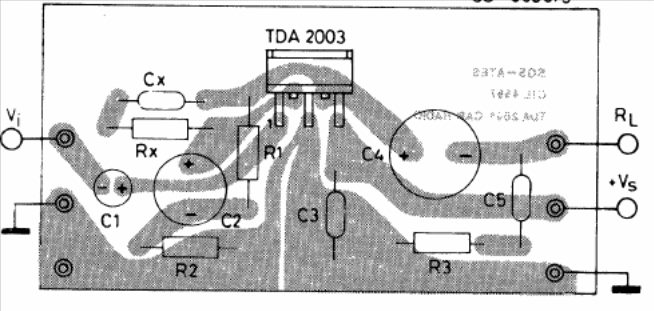

This car amplifier was found in the 1982 SGS Linear Integrated Circuits manual. The circuit can be powered by voltages from 8 to 18 V and the load impedance can be between 2 and 8 ohms. The printed circuit board is given next to the diagram.
