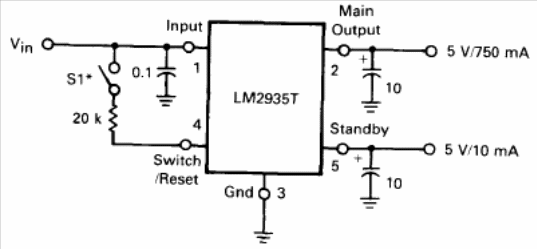

The circuit shown is from the Motorola Linear Databook from 1990. The circuit has two outputs with 5 V and a Reset switch. The integrated circuit must be mounted on a heat radiator.
Dual Voltage Regulator LM2935T (CB14518E)
