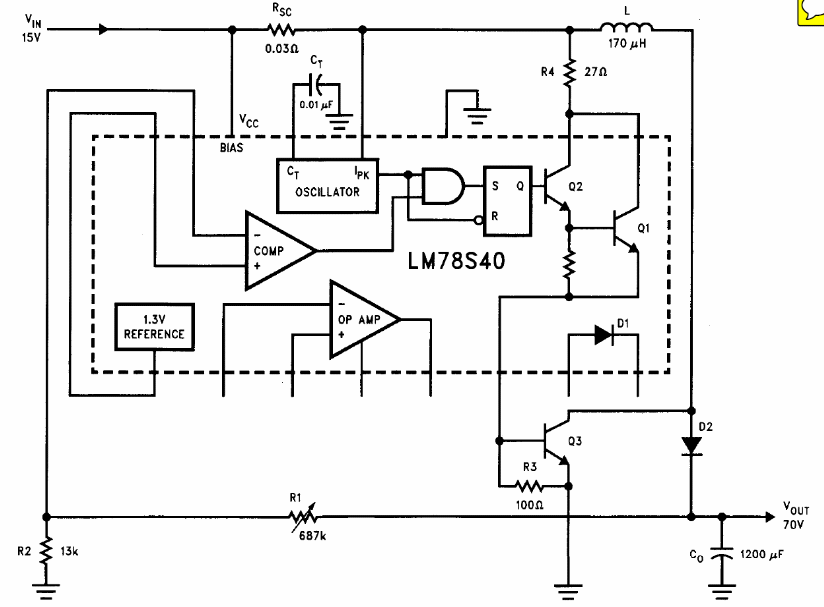

The circuit shown is from National Semiconductor's Linear Applications Handbook. It makes use of the LM78S40 which is not an easy component to obtain today.
| Clique na imagem para ampliar |
Switching Regulator from 15 V to 70 V x 1.5 A (CB14404E)
