NC Power Relay (CB14816E)

Details
Written by: Newton C. Braga

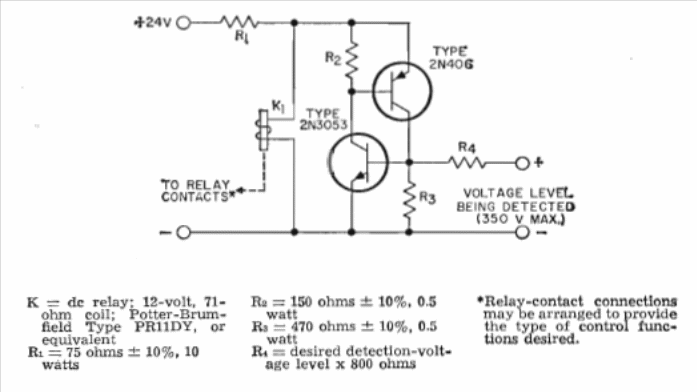

This power step for relay activation was found in the 1964 RCA transistors manual. The circuit is of the NF type and the transistors admit equivalents. R4 depends on the drive voltage.




| Clique na imagem para ampliar |
