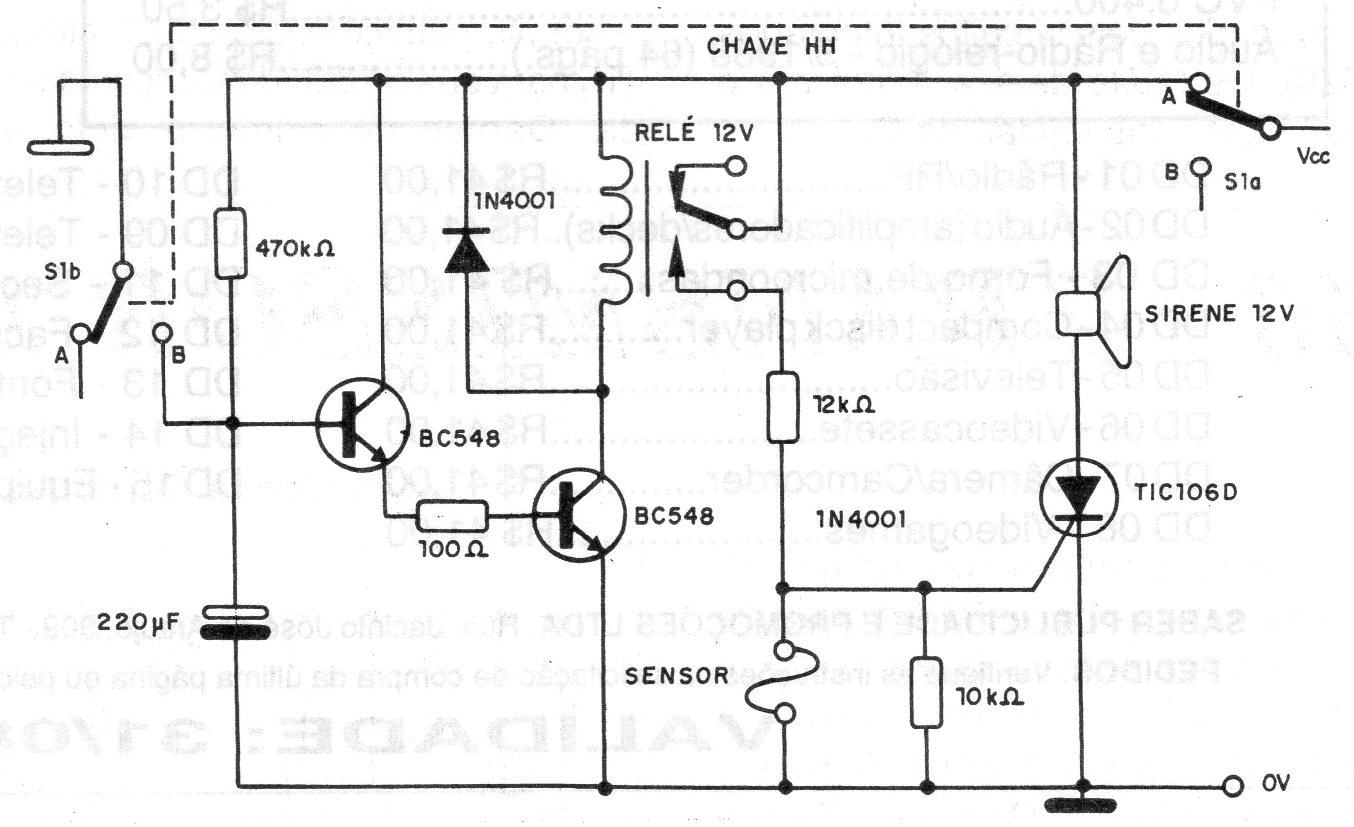

This 1995 circuit uses interruption sensors or NC connected in series in any quantity. With the opening of one of them, the circuit goes off, feeding a 12V siren. The circuit is simple, and the components used are common.
