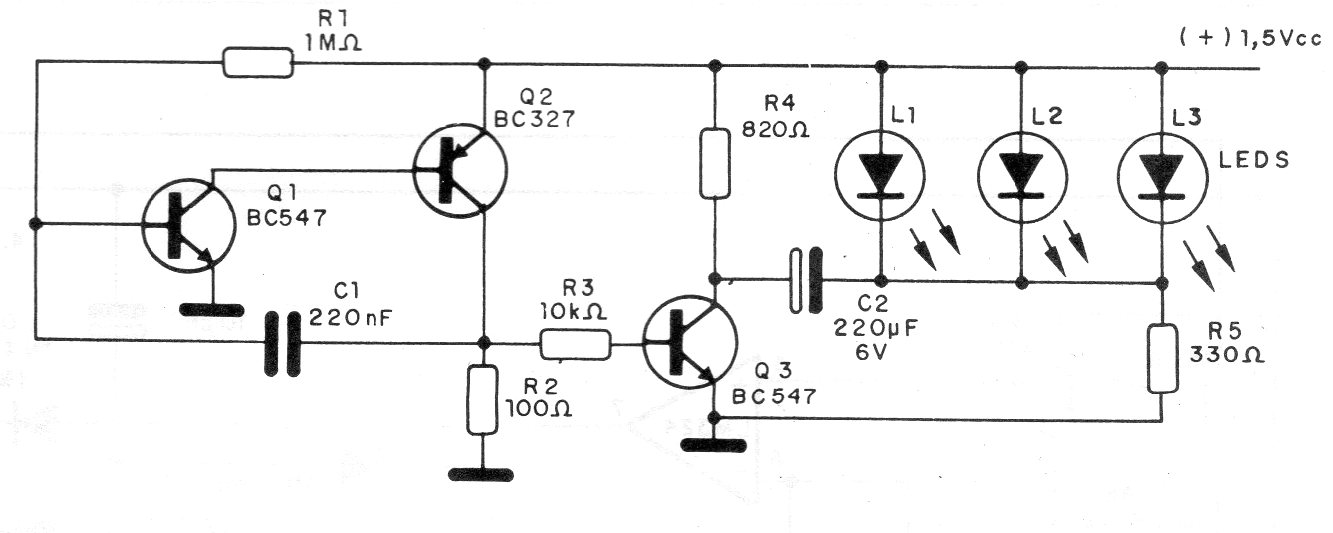

We found this circuit in a 1994 documentation. It was originally created to be used as a sign for a bicycle. The power can be supplied by dynamo or batteries and the frequency can be changed by changing the value of C1.
