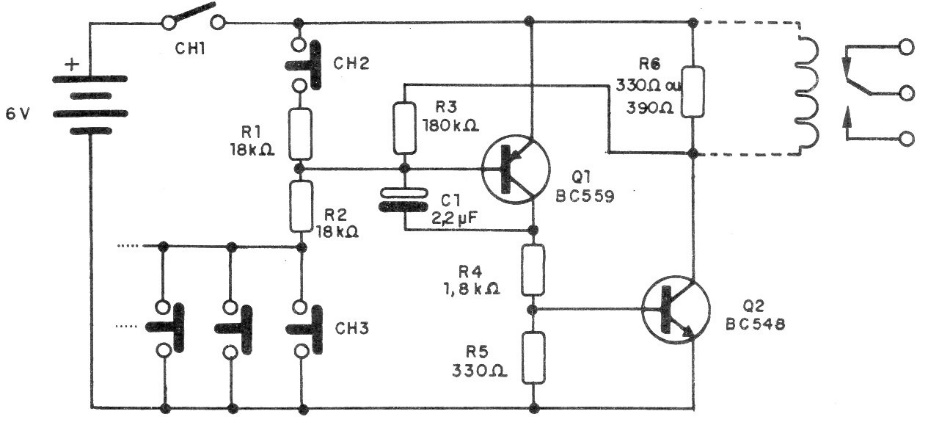

This circuit controls a relay in a bistable way by touching the sensors type NF (CH3) and NO (CH2). The circuit can be used for alarms or device controls. The supply can be 6 or 12 V depending on the relay used.
| Clique na imagem para ampliar |
Electronic Switch (CB16908E)
- Details
- Written by: Newton C. Braga
