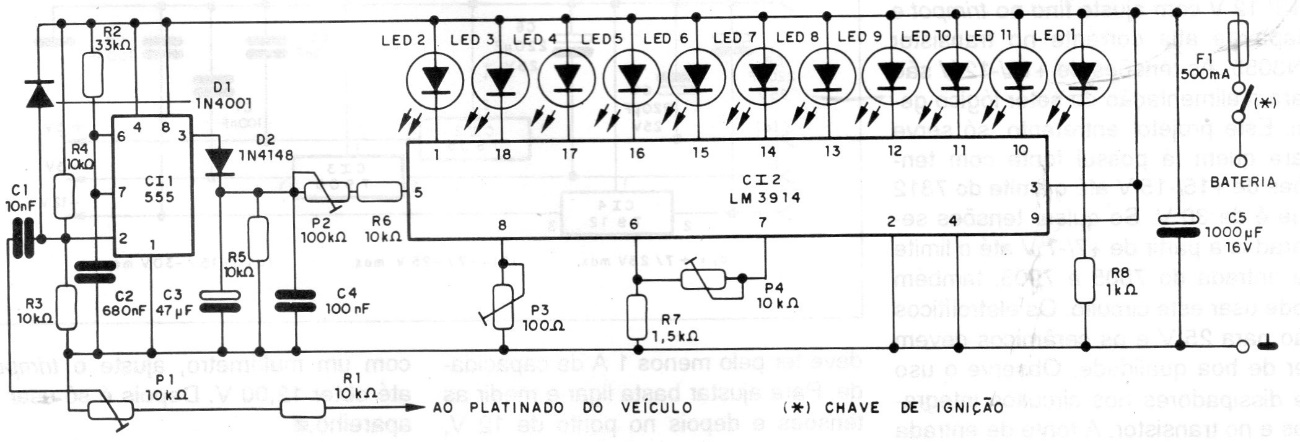

This tachometer from a 1994 publication has a bargraph scale with the well-known LM3914 integrated circuit. The circuit receives the pulses of the platinum being used in cars of the time. However, the circuit can be adapted for other applications such as those using electric motors in automation.
| Clique na imagem para ampliar |
