LM386 1 W amplifier (CB15766E)

Details
Written by: Newton C. Braga

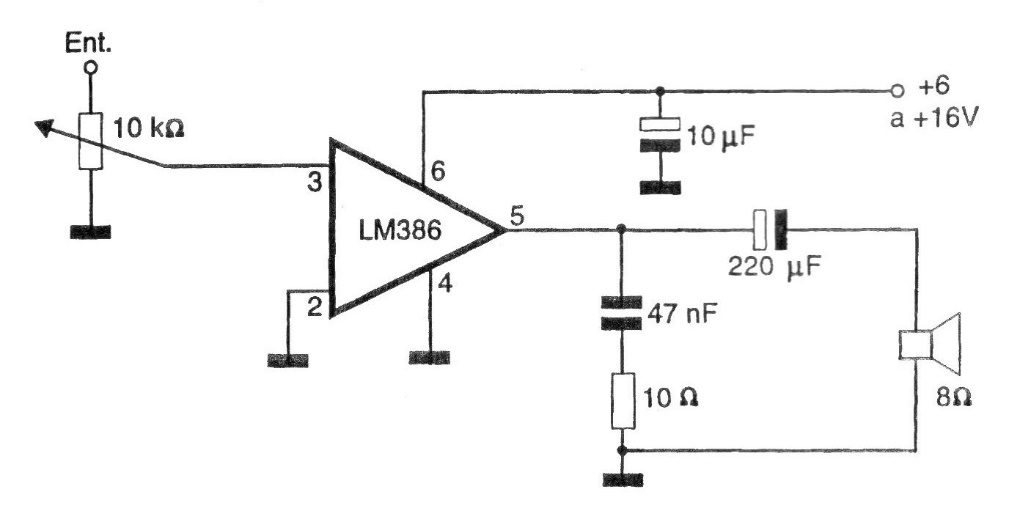

This circuit is the factory version of the LM386 low-power amplifier. The sound quality is excellent, and the power can be supplied with voltages from 6 to 16 V.
