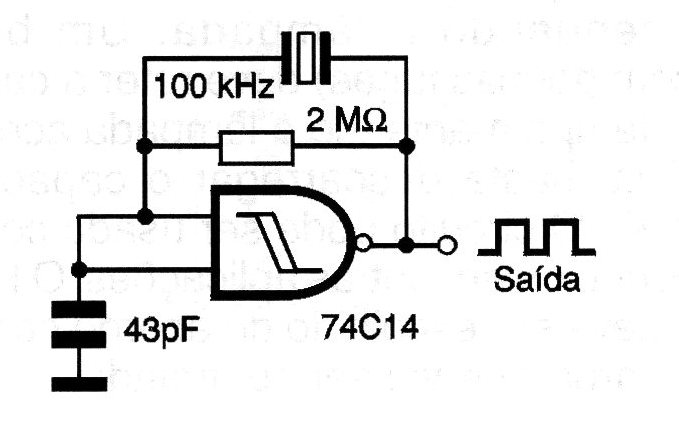

This oscillator uses one of the four ports of a 74C14 integrated circuit and can generate 100 kHz signals controlled from a crystal. The 43pF capacitor must be ceramic and the power must be supplied with a stabilized voltage of 5 V.
