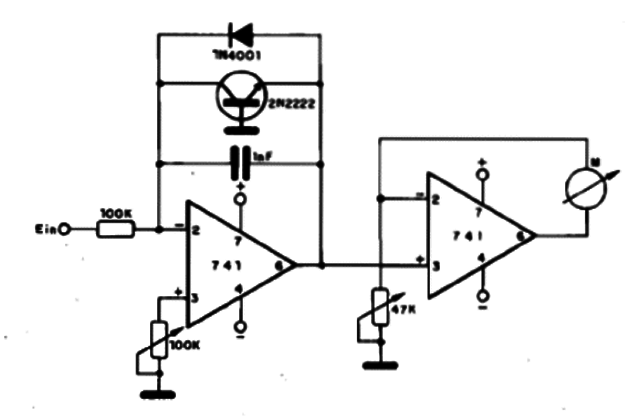

This circuit has a logarithmic response sourcing signals to na analog meter. The meter is a 200 µA or 1 mA galvanometer. The adjustment of the scale is made by two trimpots. Power supply must be dual.
Log Voltmeter (CB903E)
- Details
- Written by: Newton C. Braga
