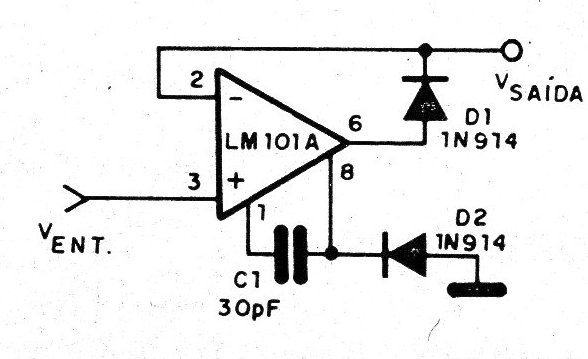

A diode with precision characteristics can be simulated with the figure circuit based on the integrated LM101A. 1N914 diodes can be replaced with equivalents such as 1N4148. The power supply must be symmetrical as in other applications.
